VEHICLE COMPATIBILITY & PRODUCT DETAILS

EVject is committed to transparency and customer satisfaction.

QUICK COMPATIBILITY CHECK

FULLY COMPATIBLE

  • Cybertruck (All years)
  • Model Y (All years)
  • Model 3 (2019 and later)
  • Model S (2022 and later)
  • Model X (2022 and later)
  • Other NACS EVs (subject to further testing)

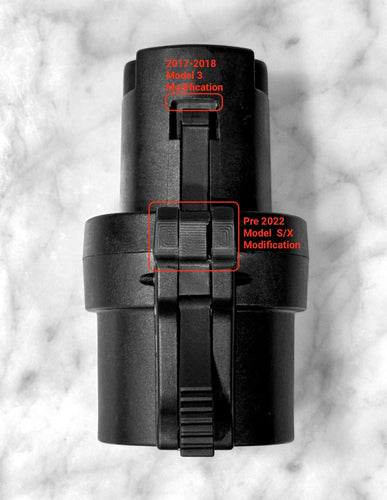

COMPATIBLE WITH MODIFIED EVJECT

  • Model 3 (2017-2018)
  • Model S (2012-2021)
  • Model X (2015-2021)

KNOWN ISSUES SUMMARY

  • Model S 2012-2021 & Model X 2015-2021, potential vehicle body fit interference. See Model S and X section below for details.

  • Model 3 2017-2018, potential flange gap issues. See Model 3 section below for details.

  • Cybertruck, S, X charging from 0-30% on V3 Superchargers may cause devices to get hot or cause the thermal sensor to stop the charge. If this occurs, please allow EVject and Supercharger to cool for a few minutes and then resume the charging session as normal.
  • No issues have been reported on V1, V2, or V4 Superchargers or CCS chargers.

Contact us with any questions

FIRST YEAR OF EACH TESLA VEHICLE MODEL

  • Model S 2012
  • Model X 2015
  • Model 3 2017
  • Model Y 2020
  • Cybertruck 2023

MODEL S & X

2021 & EARLIER

  • Known body fit interference issue. Due to irregular charge ports, EVject may require modification to fit within the charge port area.
  • A modified version is available, please contact us using the Contact Us button below if you experience an issue.

2022 & LATER

  • Fully compatible.
  • Model S charging from 0-30% on V3 Superchargers may cause devices to get hot or cause the thermal sensor to stop the charge.
  • If this occurs, please allow EVject and Supercharger to cool for a few minutes and then resume the charging session as normal.
  • No issues have been reported on V1, V2, or V4 Superchargers or CCS chargers.

MODEL 3

2017–2018

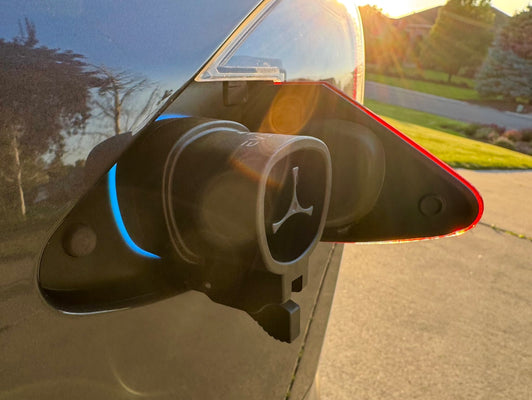

  • Known gap issue in the charge port flange. A specific version of EVject is required for proper functionality.

2019 & LATER

  • Fully compatible with no known issues.

MODEL Y

ALL YEARS

  • Fully compatible with no known issues.

CYBERTRUCK

ALL YEARS

  • Fully compatible.
  • Cybertruck charging from 0-30% on V3 Superchargers may cause devices to get hot or cause the thermal sensor to stop the charge.
  • If this occurs, please allow EVject and Supercharger to cool for a few minutes and then resume the charging session as normal.
  • No issues have been reported on V1, V2, or V4 Superchargers or CCS chargers.

EVJECT SPECIFICATIONS, SAFETY & WARRANTY

TESTED AT

  • 12 kW on Level 2 AC chargers
  • 250 kW on V3 Superchargers
  • 325 kW on V4 Superchargers
  • 330 kW on CCS1 chargers
  • 1,000 VDC & 850 amps in lab tests


SPECIFICATIONS
• Rated Voltage: 100-1,000 Volts
• Rated Wattage: 350 Kilowatts
• Conductor Material: Silver plated copper
• Conductors: High density power contacts, splay-proof sockets
• Shell Material: PA6630GF UL94 V-O
• Storage Temperature: -30°C to 85°C
• Operating Temperature: -20°C to 50°C ambient
• Thermal Protection: J3400 2-stage sensing and UL thermal compliance
• Security: Charger Inlet only unlocks after vehicle charge port is unlocked
• Waterproof Rating: IPX5
• Vehicle Compatibility: Model S, X, 3, Y, Cybertruck - all years
• Other NACS compatible vehicles are subject to further testing
• RoHS, EMC, FCC compliant

DISCLAIMERS

  • By using EVject, you accept all liability for vehicle and charger damage.
  • EVject NACS versions may get hot during some charging sessions from 0-30% on V3 Superchargers. There are no reported issues on V1, V2, or V4 Superchargers or CCS chargers.
  • We always recommend handling EVject and charging equipment with care until they cool down.
  • UL 2252 Statement: Caution, Risk of Electric Shock and Fire. Do not use this product if there is any damage to the EV cable, the vehicle connector, or the vehicle inlet.

SAFETY NOTES

  • Do not use if any exposed metal contacts are visible, damaged, or if EVject is cracked or separated.
  • Do not manually lock or manipulate the device by manually pressing the front latch lever.
  • Do not attempt to open, service, or reassemble EVject device.
  • Do not insert fingers or other foreign objects into EVject or charging equipment.
  • Always unlock the vehicle charge port prior to shifting out of Park (in an emergency) or removing the charger cable (during regular use).
  • Always handle EVject and charging equipment with care; devices may be hot.


EMERGENCY REPLACEMENT GUARANTEE

  • EVject will provide a discounted or complimentary replacement if the device is used in an actual emergency.
  • Please contact us using the Contact Us button below if you have used your EVject for an emergency breakaway.
  • EVject reserves the right to limit the replacement guarantee if it seems anyone is taking advantage of the policy.


WARRANTY

  • EVject device is covered under a 24-month warranty on manufacturing defects.
  • Warranty does not cover misuse, mishandling, negligence, or modifications.
  • Consult the warranty section at EVject.com for more information.



FEEDBACK & CONTACT

Your feedback is valuable in helping us improve. If you have suggestions or need further assistance, please do not hesitate to contact us.

We are continuously working to improve EVject and expand its compatibility to all EVs. Subscribe for product updates to learn how we continue to enhance functionality across a wider range of vehicles.

Contact Us

Please note that this information is subject to change as we develop new versions of EVject and gather more feedback from our customers. We recommend checking back for the latest updates.
